Solar Farm Mounting

 Aluminum Farm Mounting System
aluminum agriculture farm mounting kits

Aluminum Farm Mounting System

LARGE Aluminum Farm Ground Mounting System is suitable for farmland with ground screw.the solar panel can be installed at special angle and leaving some gap each other for the sunshine.

  • Brand:

    LARGE

  • Item No.:

    LA-ALFM

  • Payment:

    T/T or LC

  • Product origin:

    Xiamen China

  • Color:

    Natural or customized.

  • Shipping port:

    Xiamen Port,China

  • Lead Time:

    10 work days after receipt of deposit

  • Installation Site:

    Farmland

  • Raw Material:

    Aluminum Alloy 6005-T5,SUS304

  • Surface Treatment:

    Anodized,

  • Wind Load:

    Upto 60m/s

  • Snow Load:

    Upto 1.5KN/m2

  • Standard Compliance:

    AS/NZS1170.2 ; SGS and CE Certification.
Contact us

  • Product Details

Aluminun Farm Mounting System

The LARGE Aluminum Farm mounting system has been developed as a universal PV modules, The mounting system for farm earth installations.  The system composed with 55x55 square pipe and tilt H connector kits,the special D modules,AR ground rails,ground screw and the high degree of pre-assembly eliminate the need for onsite cutting, welding and enables quick and easy field PV module installations. and can support different quantity solar panel to meet the customers’ fram requirements.


Technical Parameters :

Installation Site:                   Farmland

Installation Angle:                Customized.

Wind Load:                            Upto 60m/s

Snow Load:                           Upto 1.5KN/m2

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:               Applicable to any dimension

Standard Compliance:          AS/NZS1170.2 ; SGS and CE Certification.

Material:                                 Aluminum Alloy 6005-T5, SUS304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life










Hot Tags :

Aluminum farm mounting bracket Farmland racking aluminum solar system photovoltaic farmland al-mounting bracket Solar panel farm mounting system farm racking system solar panel on farmland mounting system aluminium structure for solar panels
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

New Products
related products

Solar farm ground mounting system
Carbon Steel Farm Mounting System

LARGE Solar Farm Ground Mounting System is suitable for farmland with ground screw.the solar panel can be installed at special angle and leaving some gap each other for the sunshine.

L-feet solar metal roof hook
Metal Roof L feet Hook

LARGE L-Foot Hook and hanger bolt are used for tin roof mounting installation.usually,the hanger bolt use M10*200mm for the roof, you also can use M12*300mm, customized is available.

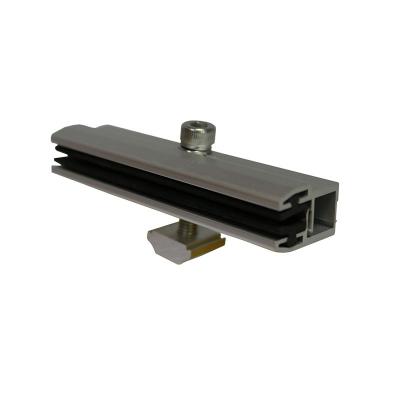

Solar rail mounting clamp
