Pitched Tin Roof Mounting System

Pitched Tin Roof Mounting System

The LARGE Energy Pitch Tin Roof Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system.

  • Brand:

    LARGE
  • Item No.:

    LA-MRM-L
  • Payment:

    T/T or LC
  • Product origin:

    Xiamen China
  • Color:

    Natural or customized.
  • Shipping port:

    Xiamen Port,China
  • Lead Time:

    10 work days after receipt of deposit
  • Installation Site:

    Tilt Tin Roof
  • Raw Material:

    Aluminum Alloy 6005-T5 & Stainless Steel 304
  • Surface Treatment:

    Anodized
  • Wind Load:

    Upto 60m/s
  • Snow Load:

    Upto 1.5KN/m2
  • Standard Compliance:

    AS/NZS1170.2 ; SGS and CE Certification.
  • Product Details

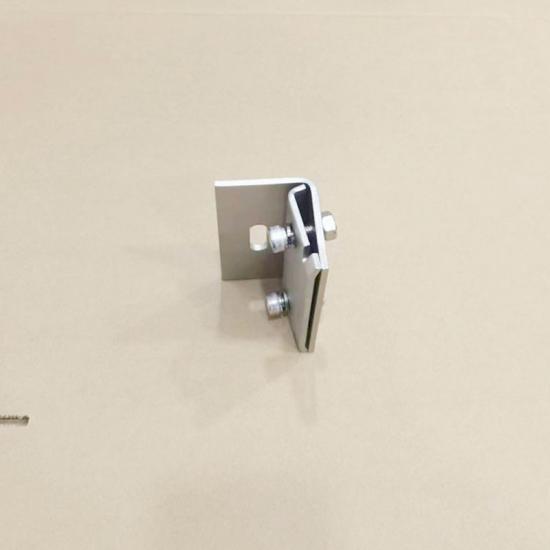

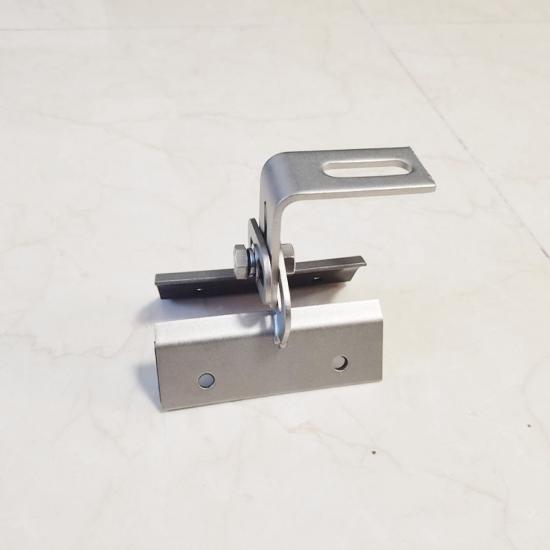

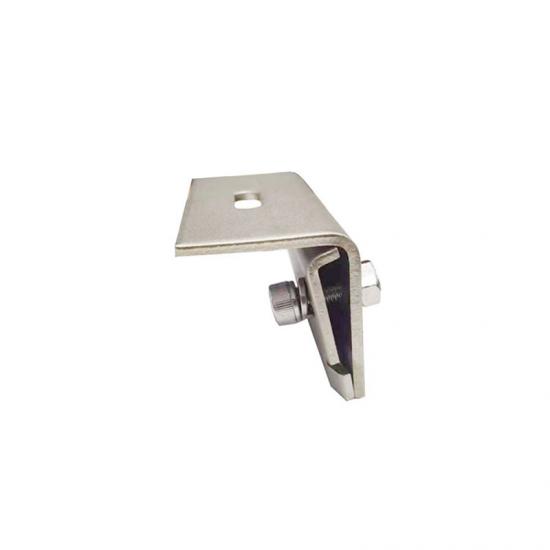

Pitched Tin Roof Mounting System

Pitched Tin Roof Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module, The special extruded aluminum rail, special D nut module, clamp kit and the various tin roof hooks,L feet kits,can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance..

Technical Parameters :

Installation Site:                     Tilt Tin Roof

Installation Angle:                  Parallel the roof

Building Height:                     Upto 20m

Wind Load:                             Upto 60m/s

Snow Load:                            Upto 1.5KN/m2

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:              Applicable to any dimension

Standard Compliance:         AS/NZS1170.2 ; SGS and CE Certification.

Material:                                Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life

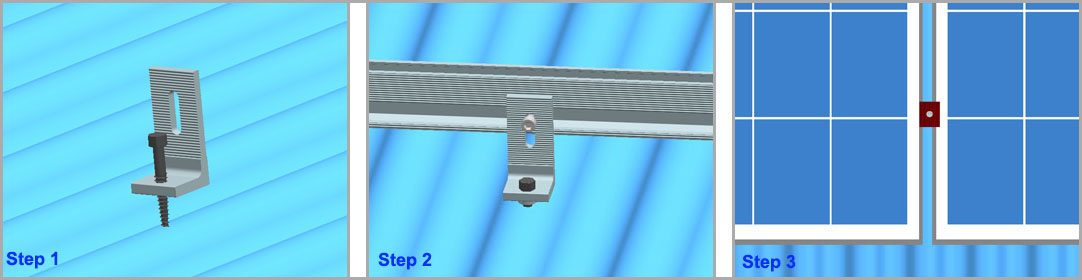

Installation Guide :

Step 1:  Prepare the L-feet to the metal roof with M6.3*80mm wood screw.

Step 2:  Install the roof rails with the L- feet and LARGE D module nut

Step 3:  Put the solar panels on the roof rails ,and fix the panel with Mid clamps,End clamps and D module nut.

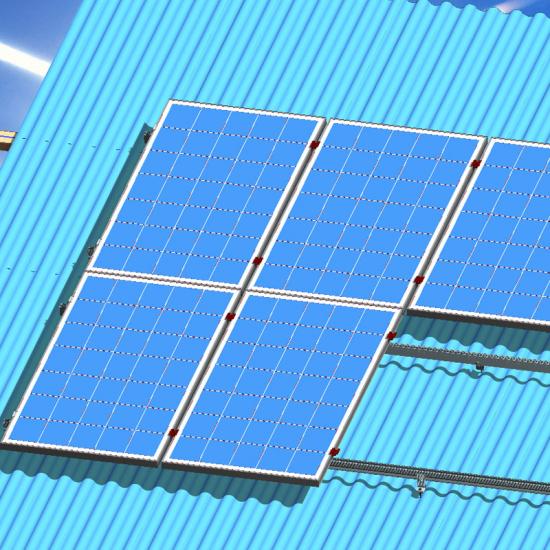

Roof rack Pv array


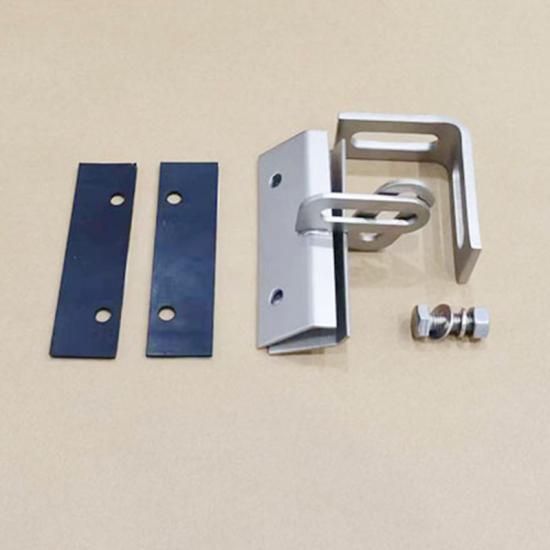

Components List :

Pv panel metal roof mounting system
