Stand Seam Tin Roof Mounting System

Stand Seam Tin Roof Mounting System

Standing Seam Tin Roof Mounting System is 100% no demage to the roof and it is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system.

  • Brand:

    LARGE
  • Item No.:

    LA-MRM-S
  • Payment:

    T/T or LC
  • Product origin:

    Xiamen China
  • Color:

    Natural or customized.
  • Shipping port:

    Xiamen Port,China
  • Lead Time:

    10 work days after receipt of deposit
  • Installation Site:

    Tin Roof
  • Raw Material:

    Aluminum Alloy 6005-T5 & Stainless Steel 304
  • Surface Treatment:

    Anodized
  • Wind Load:

    Upto 60m/s
  • Snow Load:

    Upto 1.5KN/m2
  • Standard Compliance:

    AS/NZS1170.2 ; SGS and CE Certification.
  • Product Details

Stand Seam Tin Roof Mounting System

Standing Seam Roof System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module, The special extruded aluminum rail, special module, clamp kit and the seam metal roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.


Technical Parameters :

Installation Site:                    Tin Roof(Klip Lok 700)

Installation Angle:                 Parallel the roof

Building Height:                    Upto 20m

Wind Load:                            Upto 60m/s

Snow Load:                           Upto 1.5KN/m2

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:               Applicable to any dimension

Standard Compliance:          AS/NZS1170.2 ; SGS and CE Certification.

Material:                                 Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life


Installation Guide :

Step 1:  As per the installation layout to fix the seam tin roof hook on the roof with M8*10mm screws

Step 2:  Put the solar panels on the seam tin roof hooks ,and fix the panel with Mid clamps and D module nut.

Step 3:  Put the solar panels on the seam tin roof hooks ,and fix the panel with End clamps and D module nut.

Solar power kit


Components List :

Solar mounting kit


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products

Solar mounting system
Pitched Tin Roof Mounting System

The LARGE Energy Pitch Tin Roof Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system.

Solar rack system bracket
Adjustable Tin Roof Mounting System

Adjustable Tin Roof Mounting System can be adjusted from 10 degree to 60 degree,it is suitable for any installation location you need!

L-feet solar metal roof hook
Metal Roof L feet Hook

LARGE L-Foot Hook and hanger bolt are used for tin roof mounting installation.usually,the hanger bolt use M10*200mm for the roof, you also can use M12*300mm, customized is available.

Solar fastener
Stainless Steel 304 Screw

LARGE SUS304 screws and nuts are used on many solar roof hooks and other solar components, its very important for solar modules' installation.

Triangle mounting system for flat roof
Triangle Flat Roof Mounting System

Triangle Flat Roof Mounting System is fixed angle or adjusted from 10 degree to 60 degree,it is suitable for conctete roof,metal roof and open concrete ground.

PV Panel Roof Mounting
Pitched Tile Roof Mounting System

Pitched Tile Roof Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system,it can be high pre-assembly and make the installation easy and quick to save your labor cost and time.

Solar rail mounting clamp
Solar Panel Mid Clamps

LARGE Solar Panel Clamps are made of strength extrusion aluminum alloy 6005-T5 ,which can be used for solar panel installation with the thickness 25~50mm of solar modules. It is pre-assembled by different length of SUS304 screws and aluminum D module nuts to meet your solar panel's requirement.

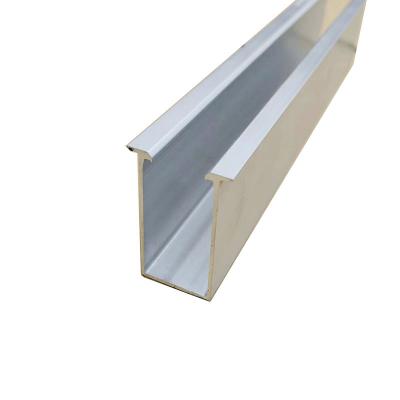

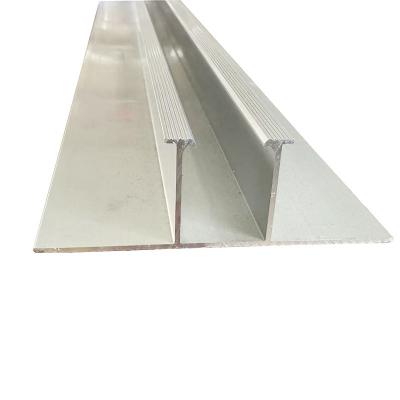

Solar panel mounting rail
