Triangle Flat Roof Mounting System

Triangle Flat Roof Mounting System

Triangle Flat Roof Mounting System is fixed angle or adjusted from 10 degree to 60 degree,it is suitable for conctete roof,metal roof and open concrete ground.

  • Brand:

    LARGE
  • Item No.:

    LA-FRM-T
  • Payment:

    T/T or LC
  • Product origin:

    Xiamen China
  • Color:

    Natural or customized.
  • Shipping port:

    Xiamen Port,China
  • Lead Time:

    10 work days after receipt of deposit
  • Installation Site:

    Concrete Flat Roof ,Tin Roof and Open Ground
  • Raw Material:

    Aluminum Alloy 6005-T5 & Stainless Steel 304
  • Surface Treatment:

    Anodized
  • Wind Load:

    Upto 60m/s
  • Snow Load:

    Upto 1.5KN/m2
  • Standard Compliance:

    AS/NZS1170.2 ; SGS and other international standards
  • Product Details

Triangle Flat Roof Mounting System

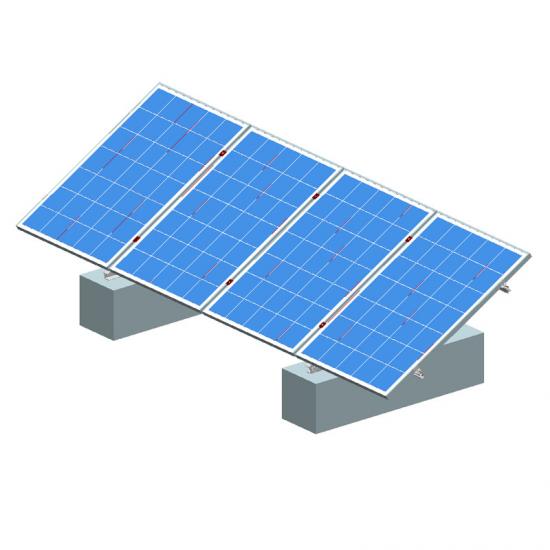

The LARGE Triangle Flat Roof has been developed as a universal PV modules mounting system for tin roof,concrete flat roof or ground installations. The angle can be fixed or adjusted by 10-15° ;15-30°,30-60° The innovative aluminum base rails. the special modules,Triangle kit, and the high degree of pre-assembly eliminate the need for onsite cutting welding and enables quick and easy field PV module installations.


Technical Parameters :

Installation Site:                    Concrete Flat Roof,Tin Roof and Open Ground

Installation Angle:                10~60 degree or fixed angle

Wind Load:                            Upto 60m/s

Snow Load:                           Upto 1.5KN/m2

Applicable Module:               Framed or Frameless

Module Orientation:              Landscape and Portrait

Module Dimension:               Applicable to any dimension

Standard Compliance:          AS/NZS1170.2 ; SGS and other international standards

Material:                                 Aluminum Alloy 6005-T5, Stainless Steel 304

Color:                                     Natural or customized.

Warranty:                              12 years of quality warranty and 20 years service life



Installation Guide :

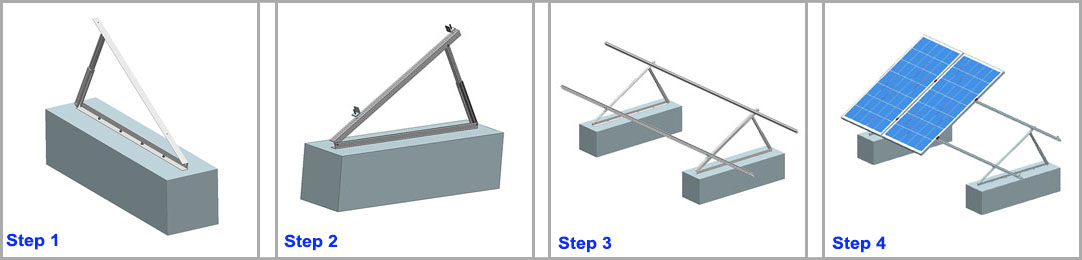

Step 1Install the triangle bracket as desired. fix the foot with M12X120mm stainless steel buried bolts.

Step 2:  Fix the L connector onto the triangle bracket with M8*25mm screws and nuts.

Step 3:  Install the 2# roof rail on the L connector with D module nut and M8*25mm screws .

Step 4:  Put the solar panels on the roof rails ,and fix the panel with Mid clamps,End clamps and D module nut.
