Pitched Tile Roof Mounting System

Pitched Tile Roof Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system,it can be high pre-assembly and make the installation easy and quick to save your labor cost and time.

Brand:
LARGE
Item No.:
LA-TRM
Payment:
T/T or LC
Product origin:
Xiamen China
Color:
Natural or customized.
Shipping port:
Xiamen Port,China
Lead Time:
10 work days after receipt of deposit
Installation Site:
Pitched Roof
Raw Material:
Aluminum Alloy 6005-T5 & Stainless Steel 304
Surface Treatment:
Anodized
Wind Load:
Upto 60m/s
Snow Load:
Upto 1.5KN/m2
Standard Compliance:
AS/NZS1170.2 ; SGS and CE Certification.

Product Details

Pitched Tile Roof Mounting System

Pitched Roof Tile Mounting System is engineered for the maximum flexibility possible in designing and planning for the commercial and residential roof solar system. It is applicable to install the usual framed module, The special extruded aluminum rail, special D nut module, clamp kit and the various roof hooks can be high pre-assembly and make the installation easy and quick to save your labor cost and time. The customized length can eliminate the weld and cut onsite to keep the high anticorrosive performance, the structure strength and the appearance.

Technical Parameters :

Installation Site: Pitched Roof

Installation Angle: Parallel the roof

Building Height: Upto 20m

Wind Load: Upto 60m/s

Snow Load: Upto 1.5KN/m²

Applicable Module: Framed or Frameless

Module Orientation: Landscape and Portrait

Module Dimension: Applicable to any dimension

Standard Compliance: AS/NZS1170.2 ; SGS and CE Certification.

Material: Aluminum Alloy 6005-T5, Stainless Steel 304

Color: Natural or customized.

Warranty: 12 years of quality warranty and 20 years service life

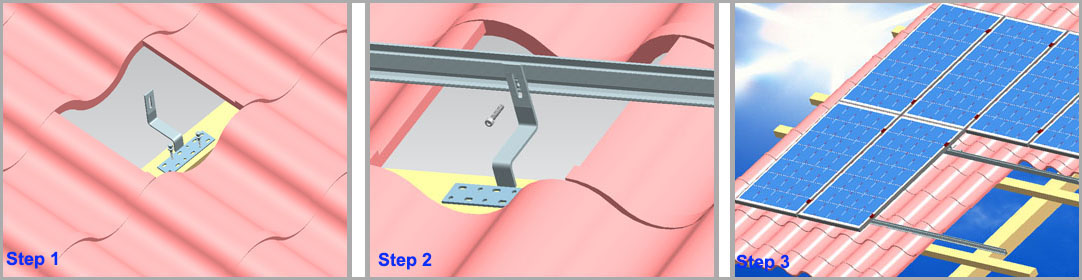

Installation Guide :

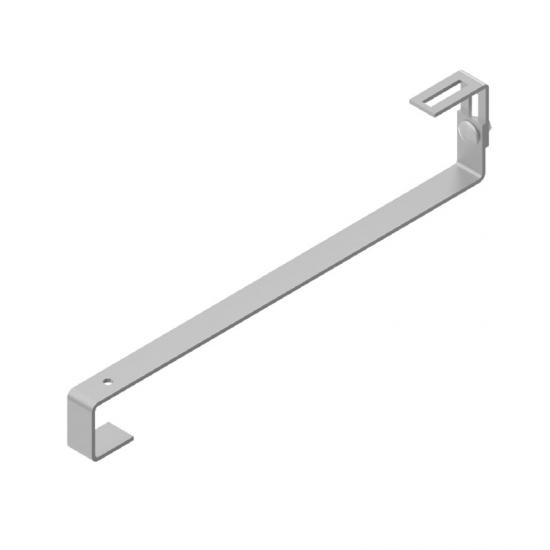

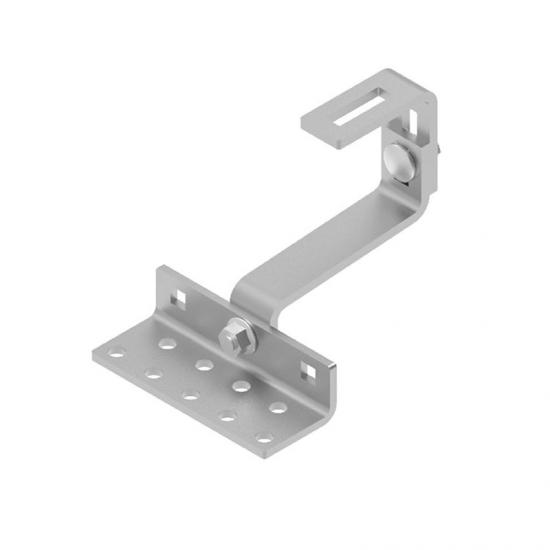

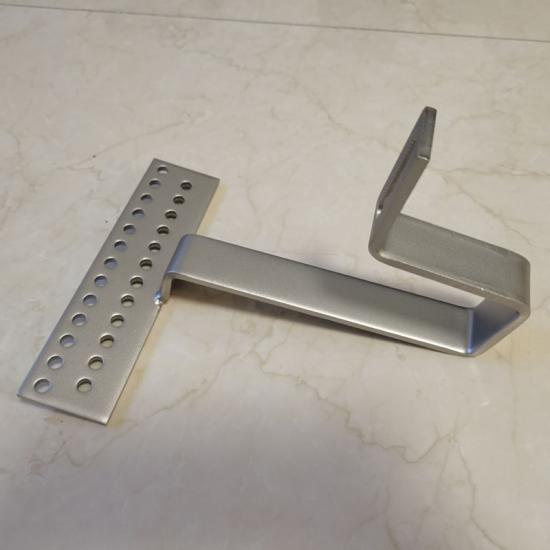

Step 1: Arrange the roof hook position as previously designed layout, take away top roof tiles and install the roof hooks into the roof wooden beam with M6.3x80mm wood screws.

Step 2: Fix the roof rail on the roof hook with LARGE D module nut and M8x25mm screws.

Step 3: Put the solar panels on the roof rails ,and fix the panel with Mid clamps,End clamps and D module nut.

Solar rooftop mounting system

Components List :

Roof mount solution

Hot Tags :

Solar mount for solar panel Solar roof tiles mounting pitched Roof bracket racking system Pitch roof rack bracket Solar roman roof racking system Solar roof mount on tile roof Pitch roof mounting system PV modules tile roof mount

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Pitched Tile Roof Mounting System

Categories

New Products

related products

Solar Mid Clamps

LARGE Solar Panel Mid Clamps are made of strength extrusion aluminum alloy 6005-T5 ,which can be used for solar panel installation with the thickness 25~50mm of solar modules. It is pre-assembled by different length of SUS304 screws to meet your solar panel.'s requirement.

Solar Adjustable End Clamps

LARGE Solar Panel Adjustable End Clamps are made of strength extrusion aluminum alloy 6005-T5 ,which can be used for solar panel installation with the thickness 25~50mm of solar modules. It is pre-assembled by different length of SUS304 screws and aluminum D module nuts to meet your solar panel's requirement.

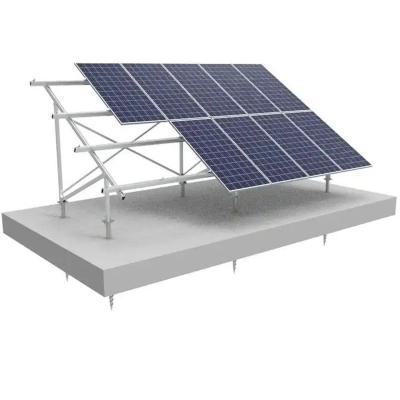

Zn-Al-Mg Steel Ground Mounting System
