PV Mounting System
Products

Ground Screw

LARGE Ground Screw are very widespread application,not only for solar ground mounting system,but also for fence system and building structure foundation,etc. can install into the soil earth no need any concrete foundation.it is very easy to operate with the device.


  • Brand:

    LARGE
  • Item No.:

    LA-GS
  • Payment:

    T/T or LC
  • Product origin:

    Xiamen China
  • Color:

    Silver
  • Shipping port:

    Xiamen Port,China
  • Lead Time:

    10 work days after receipt of deposit
  • Installation Site:

    Open Ground
  • Raw Material:

    Hot Galvanized Q235
  • Surface Treatment:

    Hot Galvanized
  • Wind Load:

    Upto 60m/s
  • Snow Load:

    Upto 1.5KN/m2
  • Standard Compliance:

    AS/NZS1170.2 ; SGS and other international standards
  • Product Details

Solar Ground Screw For Ground Mounting

LARGE Ground Screw including with plate and non-plate, The diameter of plate is OD180, OD200 and OD220mm. 220mm, The normal diameter of pole is OD76 and OD48.6mm.The material of ground screw is hot galvanized Q235 steel, its hot-dip gavanized thickness is  more than 80μm.

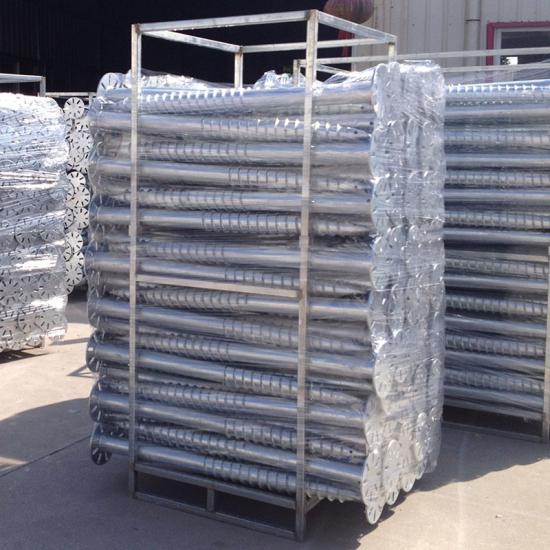

LARGE Solar Ground Screw Pictures:





Ground Screw Feature:

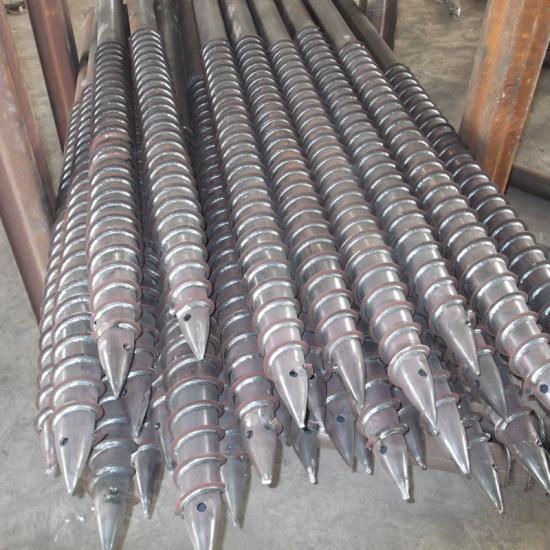

Ground screw anchors

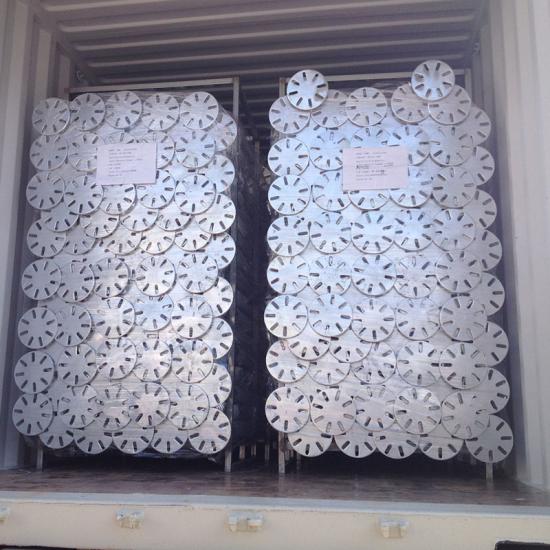

Ground Screw Plate Series:


Ground Screw Plate Mounting

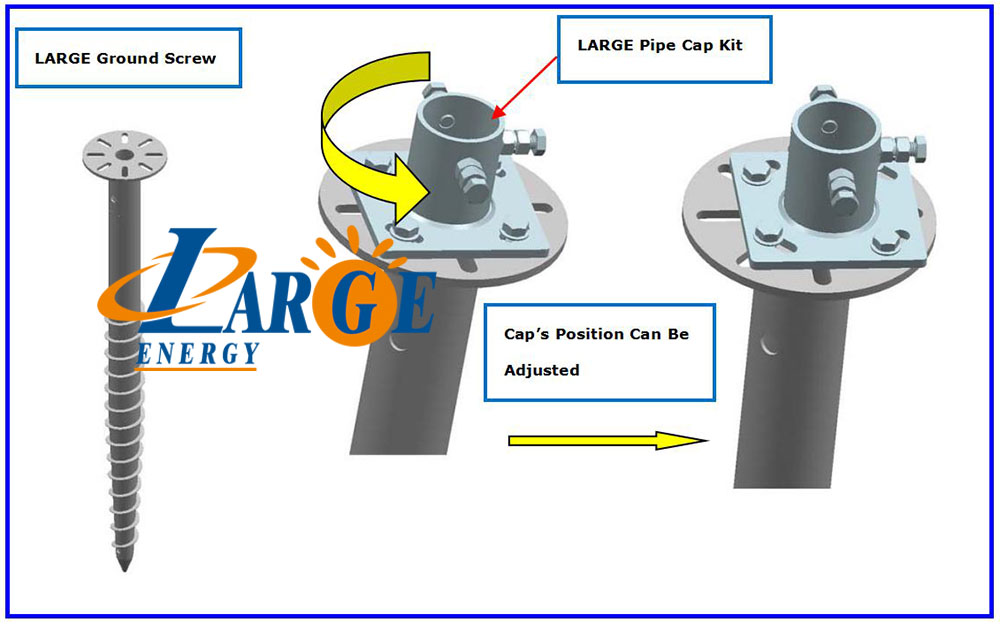

Ground Screw and Pipe Cap Base installation Guide:

Ground Screw Installation
